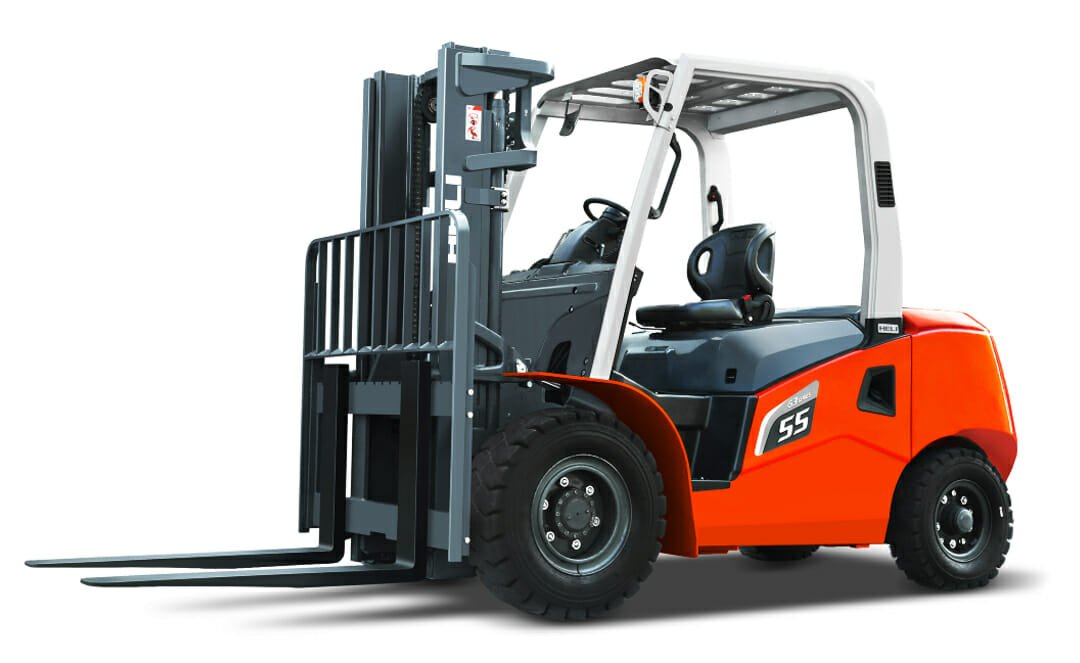

4-5.5T LPG/Diesel Forklift (G3 Series - CPCD40/45/50/55 CPQYD40/45/50/55)

$0.00

A pinnacle of strength of versatility designed to revolutionise material handling, HELI's G3 IC Dual Counterbalanced Forklift Trucks blend power and precision with ease. Its design ensures stability and an impressive lifting capacity for efficiency.

A pinnacle of strength of versatility designed to revolutionise material handling, HELI's G3 IC Dual Counterbalanced Forklift Trucks blend power and precision with ease. Its design ensures stability and an impressive lifting capacity for efficiency.

The G3 Series showcases rugged construction and premium-grade components, ensuring remarkable durability and minimised maintenance requirements.

CHARACTERISTIC BENEFITS

  • The introduction of the new family PL image design, coupled with an appearance upgrade, optimised structural design, and premium configurations, guarantees a comfortable experience in every aspect of operation.

  • The standard load sensing configuration prioritises steering, resulting in a 5% energy saving. Additionally, the dual pump combined hydraulic system is designed to supply fluid on demand, effectively reducing the truck's fuel consumption.

  • An expanded high air intake grid ensures smoother air intake and more effective use of engine power. The design of a tail-free frame lowers the truck's centre of gravity, enhancing lateral stability and increasing the load-bearing capacity at elevation.

MODEL SPECIFICATIONS

  • Rated Capacity: 4000kg

    Height (lowered/lifted): 2250/3000mm

    Length (with/without fork): 4255/3185mm

    Overall Width: 1510mm

    Travel Speed (laden/unladen): 25/26km/h

    Lift Speed (laden/unladen): 0.58/0.62m/s

  • Rated Capacity: 4500kg

    Height (lowered/lifted): 2250/3205mm

    Length (with/without fork): 4275/3205mm

    Overall Width: 1510mm

    Travel Speed (laden/unladen): 25/26km/h

    Lift Speed (laden/unladen): 0.58/0.62m/s

  • Rated Capacity: 5000kg

    Height (lowered/lifted): 2250/3000mm

    Length (with/without fork): 4325/3255mm

    Overall Width: 1510mm

    Travel Speed (laden/unladen): 25/26km/h

    Lift Speed (laden/unladen): 0.58/0.62m/s

  • Rated Capacity: 5500kg

    Height (lowered/lifted): 2250/3000mm

    Length (with/without fork): 4375/3305mm

    Overall Width: 1510mm

    Travel Speed (laden/unladen): 25/26km/h

    Lift Speed (laden/unladen): 0.53/0.58m/s
