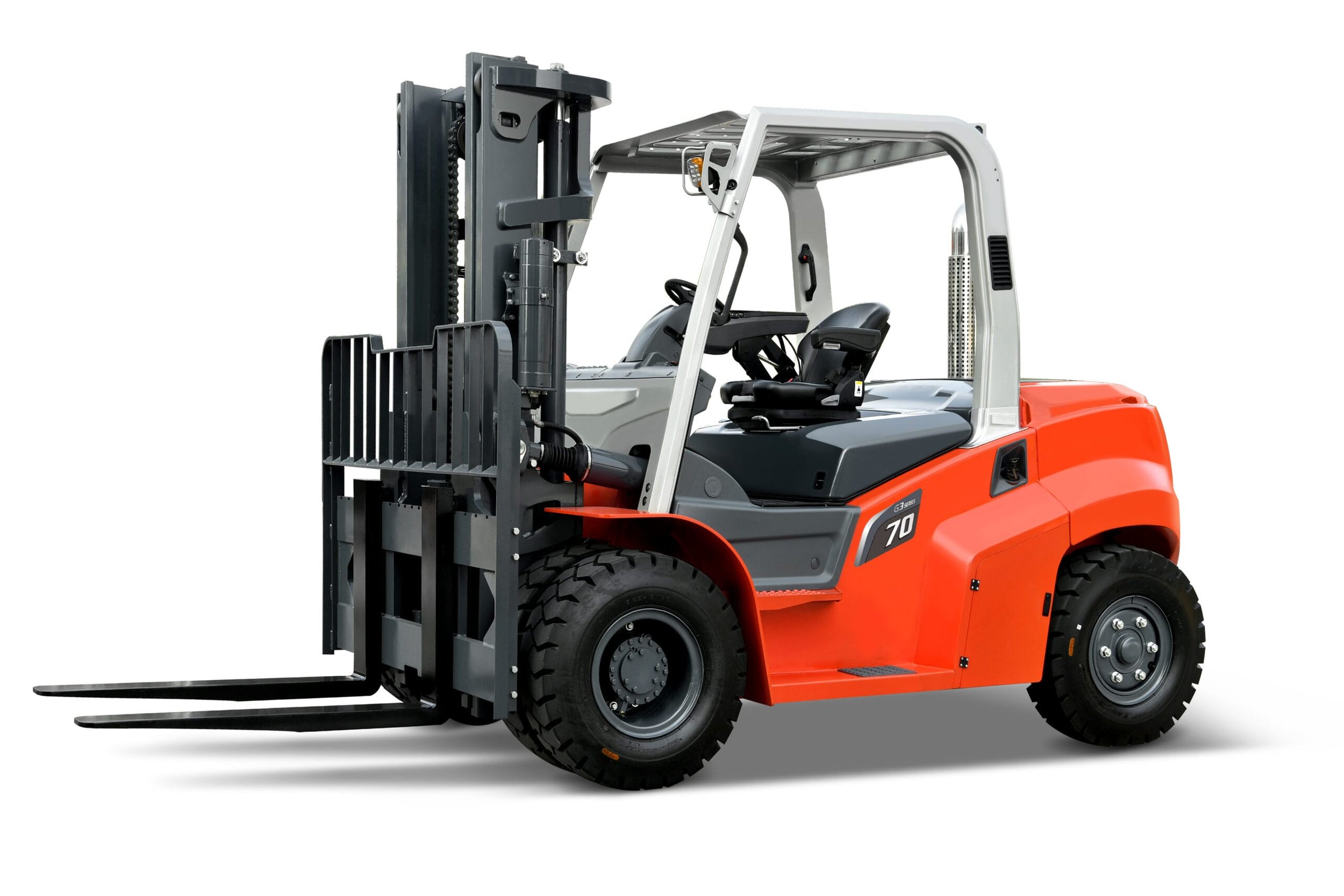

5-10T Diesel Forklift (G3 Series - CPCD50/60/70/85/100)

$0.00

CHARACTERISTIC BENEFITS

    • The QSF3.8 Euro V engine from Cummins, featuring DOC+ DPF+ SCR post-treatment technology, complies with the strictest emission standards.

    • The standard DANFOSS hydraulic variable system and load-sensitive steering system are both energy-efficient and highly effective.

    • Full-time free gear control for front 3/rear 3 gears adapts to complex working conditions.

    • The proportional valve ensures accurate and smooth gear shifting for comfortable driving.

    • A stepless speed limit function, ranging from 5km/h to the maximum speed, caters to various applications.

    • The electronic control system and gearbox clutch calibration function ensure long-term, efficient operation with smart protection for the transmission box.

    • Vibration shock reduction

    • Overall vibration and noise reduction

    • Decreased driving fatigue.

    • An Operator Presence System, which halts walking and lifting functions when the driver leaves the seat accidentally, prevents potential safety hazards due to misoperation.

    • The parking brake disables truck travel to enhance driving safety.

    • Start protection, fingertip operation system, and anti-restart protection from non-neutral gears ensure operational safety.

    • A large capacity air filter with a safety element and pressure alarm.

    • Power suspension design increases impact resistance to protect the power assembly from accidental impacts.

    • Safety warnings include a reverse imaging system and warning lights.

    • CAE forward design strengthens structural parts.

    • Wet braking with a forced oil cooling radiator guarantees stable and reliable braking performance, even under extreme conditions.

    • A high-performance cooling system ensures efficient heat dissipation for the entire truck.

    • An integrated electrical cabinet and embedded instrument panel simplify disassembly and maintenance.

    • Maintenance reminders are conveniently provided through the instrument panel.

    • A large opening angle hood and detachable front and rear floors facilitate easier checks and repairs.

MODEL SPECIFICATIONS

  • Rated Capacity: 5000kg

    Height (lowered/lifted): 2480/3000mm

    Length (with/without fork): 4705/3485mm

    Overall Width: 2045mm

    Travel Speed (laden/unladen): 29/31km/h

    Lift Speed (laden/unladen): 0.495/0.52m/s

  • Rated Capacity: 6000kg

    Height (lowered/lifted): 2480/3000mm

    Length (with/without fork): 4795/3575mm

    Overall Width: 2045mm

    Travel Speed (laden/unladen): 29/31km/h

    Lift Speed (laden/unladen): 0.495/0.52m/s

  • Rated Capacity: 7000kg

    Height (lowered/lifted): 2480/3000mm

    Length (with/without fork): 4865/3645mm

    Overall Width: 2045mm

    Travel Speed (laden/unladen): 29/31km/h

    Lift Speed (laden/unladen): 0.495/0.52m/s

  • Rated Capacity: 8500kg

    Height (lowered/lifted): 2700/3000mm

    Length (with/without fork): 5172/3952mm

    Overall Width: 2165mm

    Travel Speed (laden/unladen): 27/30km/h

    Lift Speed (laden/unladen): 0.39/0.42m/s

  • Rated Capacity: 10000kg

    Height (lowered/lifted): 2850/3000mm

    Length (with/without fork): 5422/4202mm

    Overall Width: 2165mm

    Travel Speed (laden/unladen): 27/30km/h

    Lift Speed (laden/unladen): 0.33/0.35m/s
