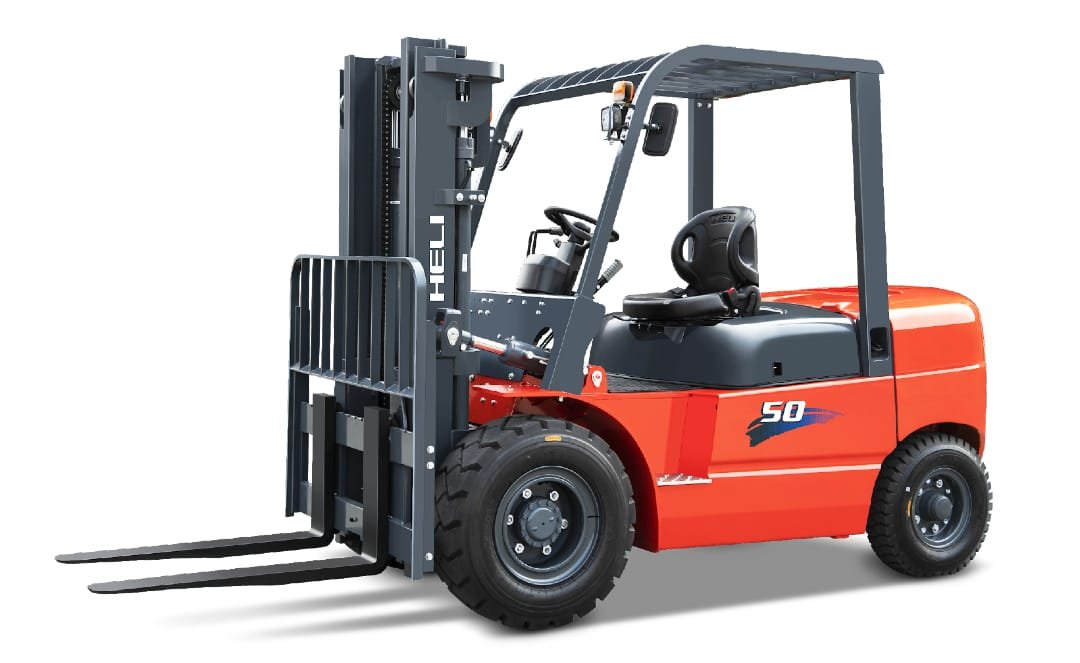

4-5T LPG/Diesel Forklift (K2 Series - CPCD40/45/50)

$0.00

CHARACTERISTIC BENEFITS

    • The brake system has been upgraded, significantly enhancing both braking reliability and comfort.

    • The hydrodynamic truck features a hydraulic-assisted braking system, ensuring more stable and reliable braking performance.

    • An enlarged, high-positioned air inlet grid facilitates smoother air intake, allowing for more efficient use of engine power.

    • A large screen LCD instrument comprehensively monitors the truck's state.

    • High-strength alloy steel used in the mast channel steel improves the tensile strength and safety factor of the chain.

    • The hydraulic system benefits from enlarged pipeline diameters and optimised arrangement, extending the lifespan of hydraulic components.

    • The introduction of a double pump confluence hydraulic system saves energy and enhances efficiency.

    • LED lights come as a standard feature, offering energy savings, environmental friendliness, and high reliability.

    • A standard load sensor prioritises steering to minimise energy loss.

    • An optimised cooling channel and the standard enlarged aluminium plate fin radiator significantly boost cooling performance.

    • A standard air cleaner alarm reminds the user to maintain the air cleaner promptly.

    • An optimised bi-wiring screw lock mechanism simplifies locking adjustments.

    • The hydraulic truck now includes a new intelligent shift system to prevent starting in second gear.

    • Optimised brake and accelerator pedals enhance driving comfort.

    • A smaller diameter steering wheel reduces operation intensity and increases convenience for the driver.

    • An integrated handle switch (on hydrodynamic trucks) and standard features like lifting and cylinder lower buffers provide a new driving experience.

    • Features such as an enlarged grained leather anti-skid handle, semi-enclosed seat, instrument backlight design, anti-skid metal pedal, and hood lock enhance operational comfort.

    • The controller is located inside the balance weight for easy maintenance.

    • A removable oil tank and floorboard simplify maintenance tasks.

MODEL SPECIFICATIONS

  • Rated Capacity: 4000kg

    Height (lowered/lifted): 2275/3000mm

    Length (with/without fork): 4310/3240mm

    Overall Width: 1480mm

    Travel Speed (laden/unladen): 24/25km/h

    Lift Speed (laden/unladen): 530/560mm/s

  • Rated Capacity: 4500kg

    Height (lowered/lifted): 2275/3000mm

    Length (with/without fork): 4310/3240mm

    Overall Width: 1480mm

    Travel Speed (laden/unladen): 24/25km/h

    Lift Speed (laden/unladen): 530/560mm/s

  • Rated Capacity: 5000kg

    Height (lowered/lifted): 2275/3000mm

    Length (with/without fork): 4310/3240mm

    Overall Width: 1480mm

    Travel Speed (laden/unladen): 24/25km/h

    Lift Speed (laden/unladen): 530/560mm/s
