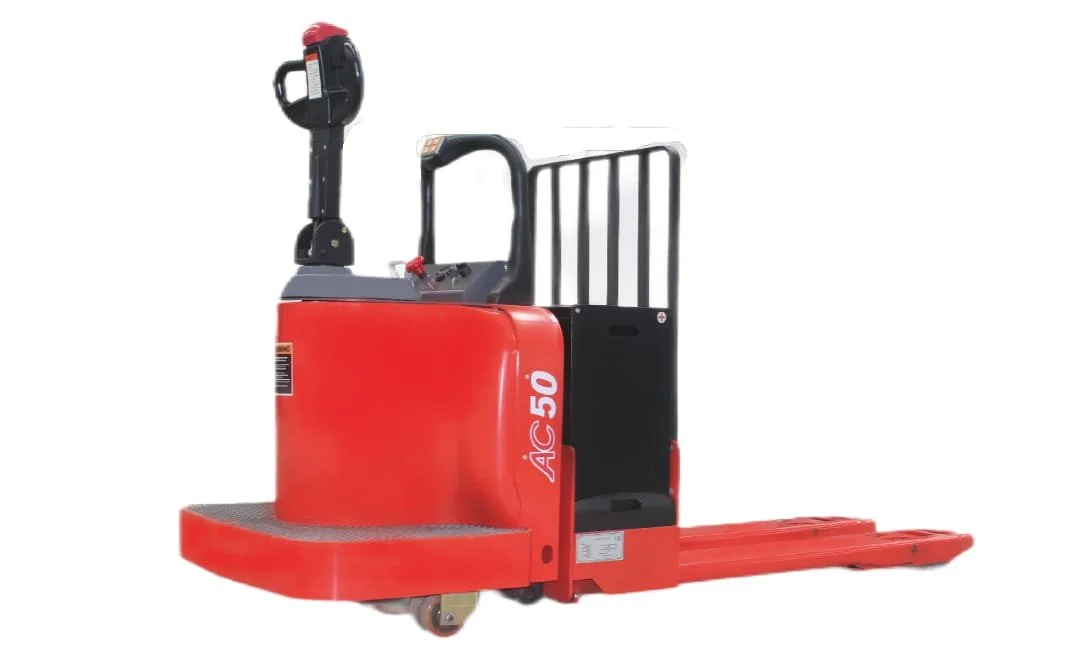

4-5T Electric Pallet Jack (CBD40/45/50-510/520)

$0.00
Add To Cart

CHARACTERISTIC BENEFITS

    • Features an AC controller offering stepless speed adjustment, robust power, and comprehensive automatic protection.

    • The curve automatic deceleration function increases safety by automatically slowing the vehicle on turns.

    • Patented drive unit floating bodies for improved performance.

    • Electronic power steering provides a light and quiet operation.

    • The AC driving motor is brushless, requiring no maintenance for added convenience.

    • Electric lifting is quick and efficient, with a standard electricity limit switch.

    • Equipped with a side-way battery compartment for straightforward replacement.

    • The LFP model lithium batteries offer rapid charging and high efficiency.

MODEL SPECIFICATIONS

  • Apply to Pallet: Double Pallet

    Operating Type: Rider

    Overall Length: 3605mm

    Overall Width: 930mm

    Fork Length: 2432mm

    Fork Width: 250mm

    Travel Speed (laden/unladen): 8/8km/h

    Max. Gradeability (laden/unladen): 5/12%

  • Apply to Pallet: Single Pallet

    Operating Type: Rider

    Overall Length: 2374mm

    Overall Width: 930mm

    Fork Length: 1212/1365/1517mm

    Fork Width: 230mm

    Travel Speed (laden/unladen): 8/8km/h

    Max. Gradeability (laden/unladen): 5/12%
