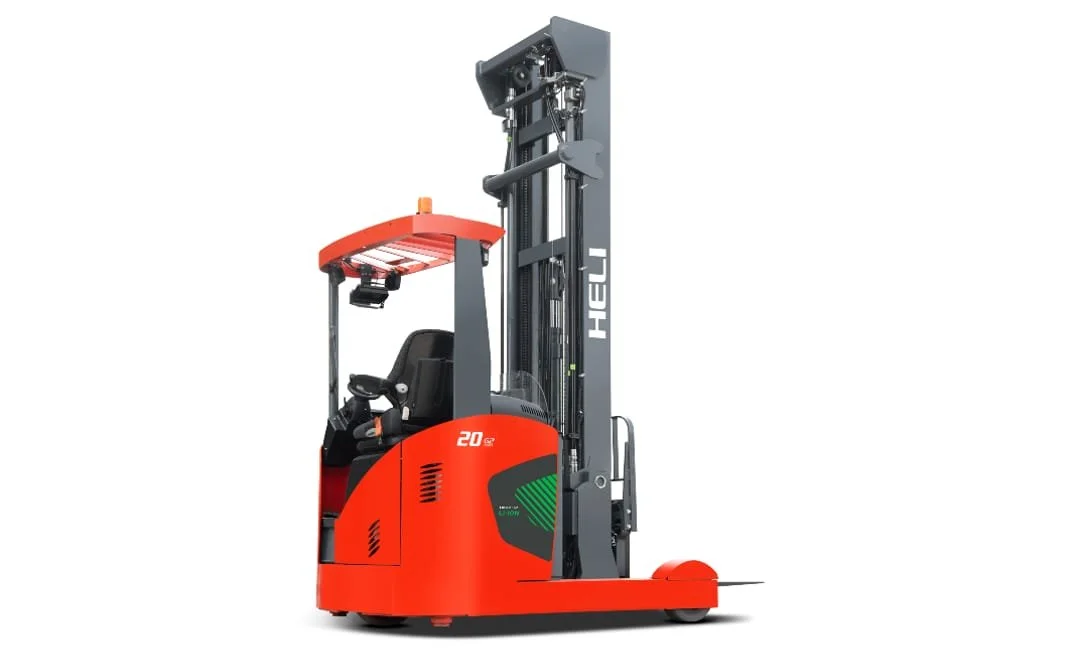

2T Heavy Duty Sit-Down Reach Forklift (G2 Series - CQD20)

• Employs three-phase AC motor control for manoeuvring, carrying, and steering, offering outstanding acceleration and quick response to changes in direction.


• Boasts a maintenance-free motor devoid of carbon brushes, guaranteeing an extended service life and lower maintenance expenses. Energy regeneration during deceleration extends operational hours.


• Maximum travel speed without load increased by 20%, and with load by 27%.

• Incorporates a newly designed hydraulic system for enhanced efficiency.


• High-power lifting motor with a MOSFET speed control electric controller.


• New, quieter gear pump model.


• Maximum lifting speed without load increased by 15%, and with load by 25%.


• The rear wheels are capable of 90° rotation, with maximum turning not extending the tyres beyond the truck's rear, effectively reducing the vehicle's length for simplified logistics and transportation.

• ZAPI controllers for travel, lifting, and steering motors.


• CAN bus technology for superior system communication.


• Emergency power-off for both main and control circuits.


• Parking brake designed for use on slopes and operation sequence protection for added safety.


• Travel speed control and electric controller self-protection features.

• EPS (Electric Powered Steering) provides easy, flexible, highly efficient, and quiet operation.


• Steering motor controller includes an automatic centering function.


• Real-time switchability between 180° and 360° steering modes.


• Automatic limitations on speed and acceleration during steering adjustments.

• Simplified control of hydraulic functions with intuitive operating units.


• Proportional solenoid valve ensures stable and comfortable lowering actions.

Rated Capacity: 2000kg

Height (lowered/lifted): 2234/4600mm

Length (with/without fork): 2624/2096mm

Overall Width: 1270mm

Travel Speed (laden/unladen): 12/17km/h

Lift Speed (laden/unladen): 0.5/0.5m/s
