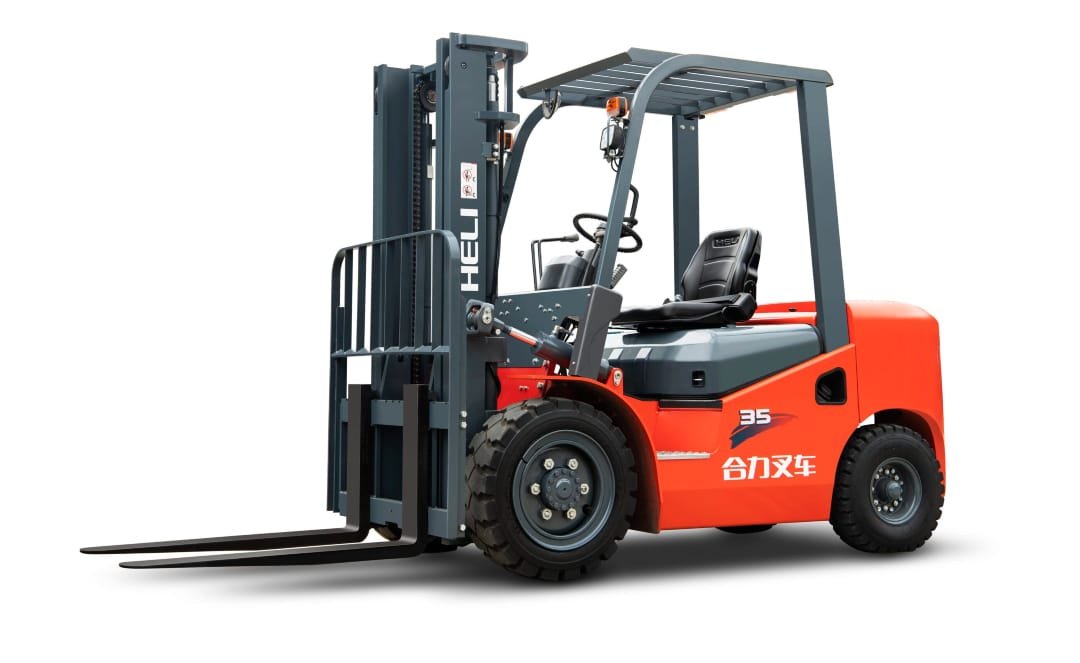

2-3.8T LPG/Diesel Forklift (K2 Series - CPCD20/25/30/35/38)

$0.00

CHARACTERISTIC BENEFITS

    • A cast steering axle increases durability.

    • Mast strength and rigidity are improved, reducing front overhang and enhancing truck stability.

    • Drive axle sealing performance is enhanced.

    • Rim design is improved for greater durability.

    • Overhead guard strength and rigidity are enhanced for better protection.

    • Electrical system protection is upgraded with a modular design for electrical parts.

    • A 24° conical seal on the hydraulic pipeline enhances sealing performance.

    • Cooling performance of the truck is improved.

    • Load capacity of the mast and frame is increased, enhancing safety performance.

    • Reduced oil consumption and pressure loss.

    • LED lights are fitted as standard for better visibility.

    • Increased lifting speed and a smaller steering radius.

    • Light switches integrated into the steering knob for convenient operation.

    • A smaller steering wheel diameter to reduce arm fatigue.

    • Increased pedal space for more comfortable operation.

    • Ergonomically designed seats.

    • Backlit meter design for easy readability, including engine fault codes displayed on the meter.

    • Improved horizontal mast view and configured lowering buffering.

    • Increased headspace for the operator.

    • Drive axle enhancements reduce maintenance frequency.

    • Fault codes displayed on the meter to facilitate truck maintenance.

    • A large opening angle of the engine hood simplifies maintenance tasks.

    • Increased contact space between the engine and transmission box for easier engine oil filter maintenance.

    • An integrated electric box simplifies maintenance.

    • The 24° conical sealing on the hydraulic pipeline simplifies assembly and disassembly.

MODEL SPECIFICATIONS

  • Rated Capacity: 2000kg

    Height (lowered/lifted): 2000/3000mm

    Length (with/without fork): 3460/2540mm

    Overall Width: 1160mm

    Travel Speed (laden/unladen): 18/18km/h

    Lift Speed (laden/unladen): 500/550mm/s

  • Rated Capacity: 2500kg

    Height (lowered/lifted): 2000/3000mm

    Length (with/without fork): 3680/2610mm

    Overall Width: 1160mm

    Travel Speed (laden/unladen): 18/18km/h

    Lift Speed (laden/unladen): 500/550mm/s

  • Rated Capacity: 3000kg

    Height (lowered/lifted): 2070/3000mm

    Length (with/without fork): 3814/2744mm

    Overall Width: 1750mm

    Travel Speed (laden/unladen): 19/19km/h

    Lift Speed (laden/unladen): 500/550mm/s

  • Rated Capacity: 3800kg

    Height (lowered/lifted): 2180/3000mm

    Length (with/without fork): 3870/2800mm

    Overall Width: 1750mm

    Travel Speed (laden/unladen): 19/19km/h

    Lift Speed (laden/unladen): 400/420mm/s
