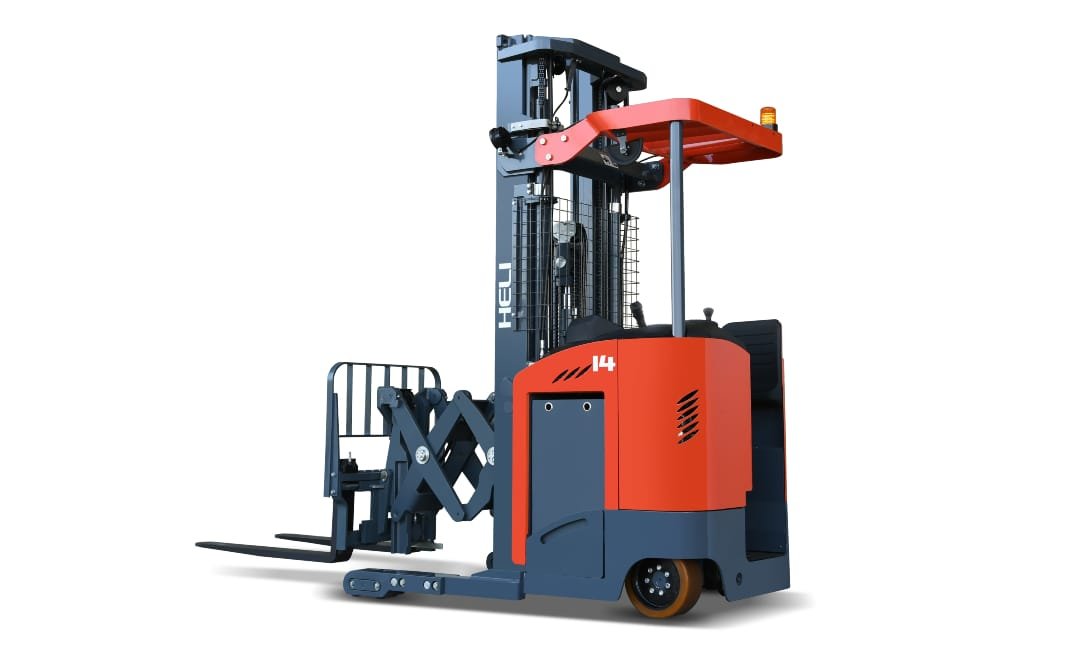

1.4T Double Reach Forklift (G Series - CQD14X2)

• An adjustable backrest and armrest to minimise fatigue.


• Multifunction control designed for ease of use.


• Controls located to alleviate body strain.


• Floor features angled and spring-suspended designs to lessen leg and back strain.

• Side stance enhances the operator's visibility both forwards and backwards.


• Automatic park brake engages when the operator exits the compartment or turns the forklift off.


• Programmable automatic deceleration during turns enhances safety.


• Comes standard with warning lights and an Operator Presence System (OPS).

• A small turning radius ensures flexible and straightforward steering.


• With ZAPI control and AC motors, drive and lift systems are optimised for peak efficiency and performance.


• A large battery capacity extends the duration of single-shift operations.


• Battery changes are swift and straightforward, thanks to the standard battery roller and side removal feature

• Includes side shift, tilt, and reach functionalities as standard.


• A wide-view mast and pantograph significantly improve the operator's visibility.


• Lift cylinders with end stroke cushions ensure smooth stopping.


• The ZAPI controller facilitates smooth lifting and lowering across the lifting cycle and provides in-transit and end-stroke buffering for the reach function.

• A large, rounded overhead guard is stylish and offers maximum visibility through strategically angled bars.


• A newly designed wide-view mast with special chains greatly enhances the forward view for the operator.

• The optimised hydraulic system increases the truck's energy efficiency.


• All LED lighting reduces lighting energy consumption by 80%.


• Regenerative motor braking recycles more energy during braking cycles.


• Speed and acceleration settings are programmable for optimal energy efficiency.

• Easy access to the drive motor and gearbox is provided by a side door.


• Chassis components are easily accessible through removable top and front covers.

• The overhead guard is directly attached to the mast, removing the need for front guard legs and optimising operator visibility.


• Comes standard with a left side guard leg for enhanced strength and an optional operator compartment guard leg for increased safety.

Rated Capacity: 1350kg

Height (lowered/lifted): 1490/5330mm

Truck Body Length (without fork): 1954mm

Truck Body Width: 1090mm

Travel Speed (laden/unladen): 10/11km/h

Lift Speed (laden/unladen): 330/520mm/s
